INDIA-50HZ

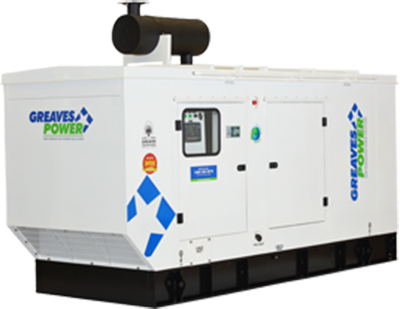

Greaves Power manufactures diesel generating sets in a wide range from 2.5KVA to 500KVA. The products are manufactured at its Chakan plant, an ISO 9001-2000 certified facility and are compliant to the emission norm CPCB-II and are eco-friendly.

The generating sets are designed for reliability, durability and economical operating cost and are well supported with genuine parts availability and service capability through 100+ strong dealer networks.

Features Optional Features
Compact- Design Best in class AMF/Auto Synchronising/Load sharing panels
High Reliability Genset Controller with remote monitoring feature
Fuel efficient Genset with heat exchanger/coil cooler
Low Lube Oil Consumption Heavy duty air cleaner
Low maintenance Cold starting Kit
Genset Rating No. of Phases RatedCurrent @ 0.8 PF Engine Model BHP RPM Electric Starting Integral Fuel Tank Capacity DG Set Dimensions (mm) Dry Weight
kVA / kW   (Amps)         Ltrs L W H Kg
2.5/2.5 1/3 10.9/3.5 LDA 510 1B1(1510)* 8.3 3000 12V 15 1110 750 800 280
3.5/3.5 1/3 15.2/4.9 LDA 510 1B1(1510)* 8.3 3000 12V 15 1110 750 800 280
5/4 1/3 21.7/6.9 LDA 510 1B1(1510)* 8.3 3000 12V 15 1110 750 800 300
7.5/6 1/3 32.6/10.4 G600W 11 3000 12V 35 1600 800 1050 400
10/10 1/3 43.4/13.9 G-12-II 18 1500 12V 50 1800 950 1335 600
15/12 1/3 65.2/20.8 G-15-II 21.6 1500 12V 50 1800 950 1335 740
20/16 1/3 86.9/27.8 G-20-II 25.2 1500 12V 75 1990 950 1335 860
25/20 1/3 108.6/34.7 G-30-II 42 1500 12V 75 1990 950 1335 1180
30/24* 1/3 130/41.7 G-30-II 42 1500 12V 75 1990 950 1335 1180
40/32 3 55.6 G-40-II 58 1500 12V 100 2350 950 1380 1350
45/36 3 62.6 G-40-II 58 1500 12V 100 2350 950 1380 1400
45/45 3 62.6 3G11TAG25 80.1 1500 12V 100 2500 1150 1535 1495
50/50 3 69.6 3G11TAG25 80.1 1500 12V 150 2500 1150 1535 1640
62.5/50 3 87 3G11TAG25 80.1 1500 12V 150 2500 1150 1535 1640
75/60 3 104.3 3G11TAG26 101.2 1500 12V 150 2800 1150 1540 1670
82.5/66 3 114.3 3G11TAG26 101.2 1500 12V 150 2800 1150 1540 1670
100/80 3 139.1 4G11TAG25 126.5 1500 12V 250 3000 1350 1884 1860
125/100 3 173.9 4G11TAG26 155 1500 12V 250 3000 1350 1884 2000
160/160 3 222.6 6G11TAG29 243.1 1500 12V 360 3800 1350 1900 3025
180/144 3 250.4 6G11TAG29 243.1 1500 12V 360 4000 1600 1900 3400
200/160 3 278.2 6G11TAG29 243.1 1500 12V 360 4000 1600 1900 3500
250/200 3 347.8 D3V6TAG21 309 1500 12V 440 4500 1800 2200 4050
320/320 3 445.2 12V14TAG23 604 1500 12V 990 5600 2000 2300 5500
400/400 3 556.5 12V14TAG23 604 1500 12V 990 5600 2000 2300 6200
500/400 3 695.6 12V14TAG23 604 1500 12V 990 5600 2000 2300 6700
